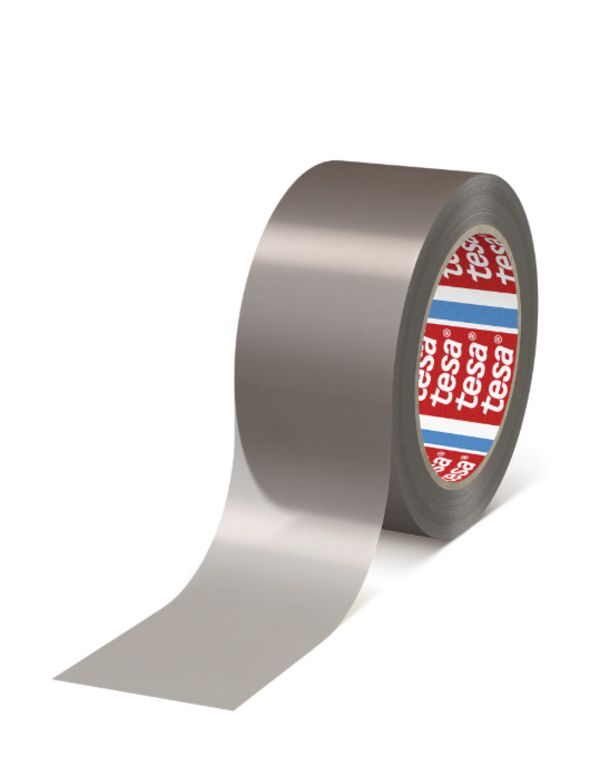

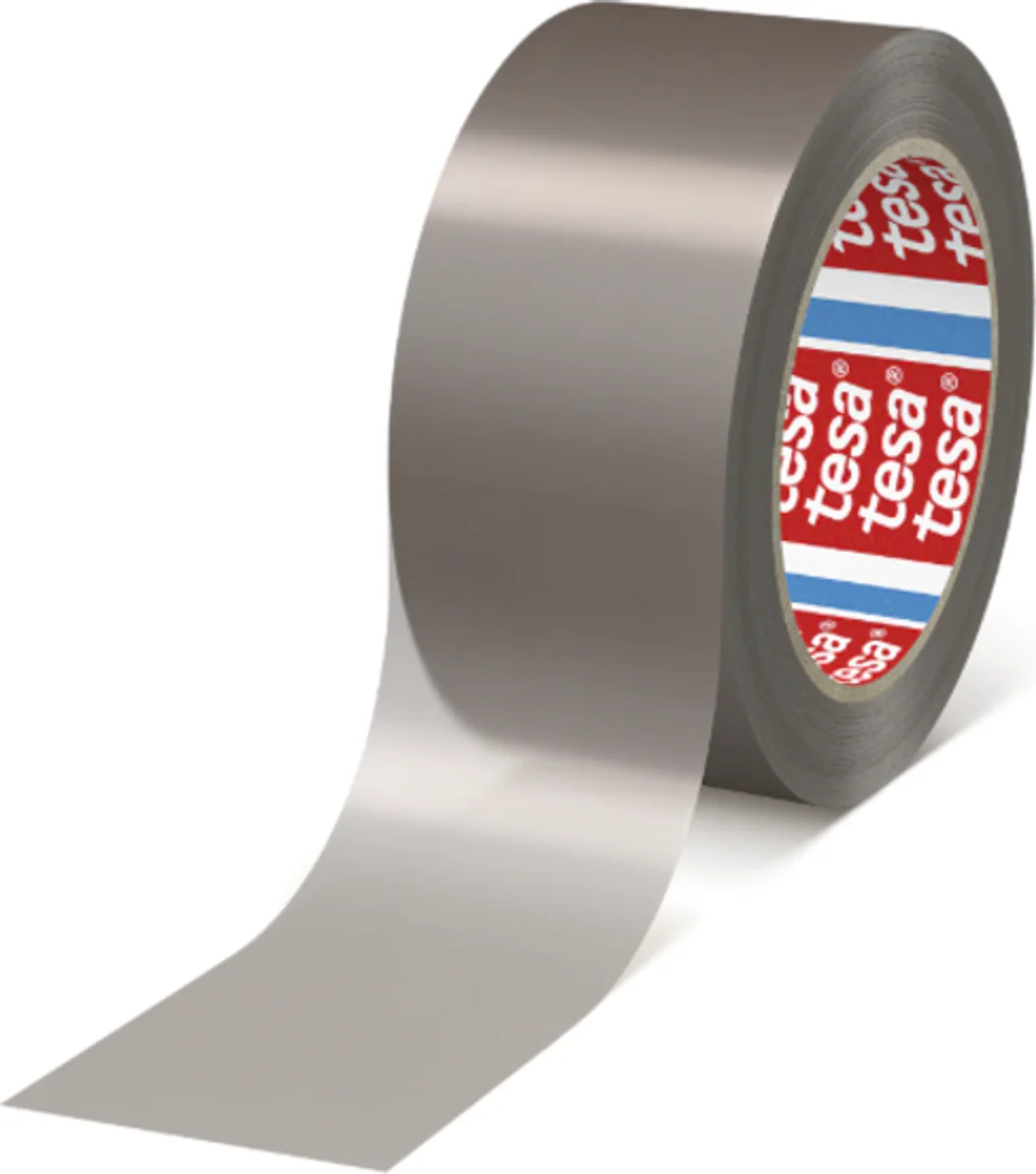

tesa® 4830 – tesa product image
tesa

tesa® 4830

160 µm PTFE film tape with silicone adhesive — the heavier-gauge partner of tesa® 4820 for belts and cylinder wrapping (tensile 220 N/cm).

  • Total thickness160 µm
  • BackingPTFE film
  • AdhesiveSilicone
Request QuoteWhatsApp for a quoteDownload TDS (PDF, tesa 28/11/24)

Call us:(603) 8073 2667(603) 8073 2688

Description

tesa® 4830 is a premium single sided PTFE tape with silicone adhesive. This product is a self-adhesive and high performance tape for demanding applications, in which high temperature resistance, very good release properties and abrasion resistance is needed.

Technical data

tesa® 4830 specifications
Total thickness160 µm
BackingPTFE film
AdhesiveSilicone
Tensile strength220 N/cm
Elongation at break150 %
Temperature resistance short term c220 °C

Values are taken from the tesa product information sheet and are typical averages, not a specification.

Features

  • Excellent release properties due to PTFE surface and its low surface energy
  • Special silicone adhesive with well-balanced properties: Excellent adhesion level, residue free removable, no oozing at the edges
  • Smooth surface with low friction coefficient
  • Enhanced mechanical stability and abrasion resistance
  • Tensilized material for high tensile strength
  • Excellent temperature resistance
  • Superior resistance against chemicals and solvents

Application fields

Belt realization to avoid the just extruded PE edges sticking on the cylinders by laminating tesa® 4820 and tesa® 4830 together

Cylinder wrapping on the extrusion coating line next to the hole of the caps

High temperature, low friction, anti-stick properties for high end requirements

Availability in Malaysia

tesa® 4830 is supplied in Malaysia by Fortis Industrial Sdn Bhd, the sole Malaysian distributor of tesa® tapes for the printing and packaging industry. To quote, send us article number 4830, the job on the line and the width you need — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.

Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.

Buyer’s guide

PTFE tapes, cloth and belts

PTFE (Teflon) Tape, Cloth and Belt: A Buyer’s Guide

Five PTFE product types, one comparison table. Match your heat sealer, roller, band sealer or dryer to the right PTFE cloth, tape or belt from the Fortis range.

Read the guide
tesa® product information disclaimer

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
