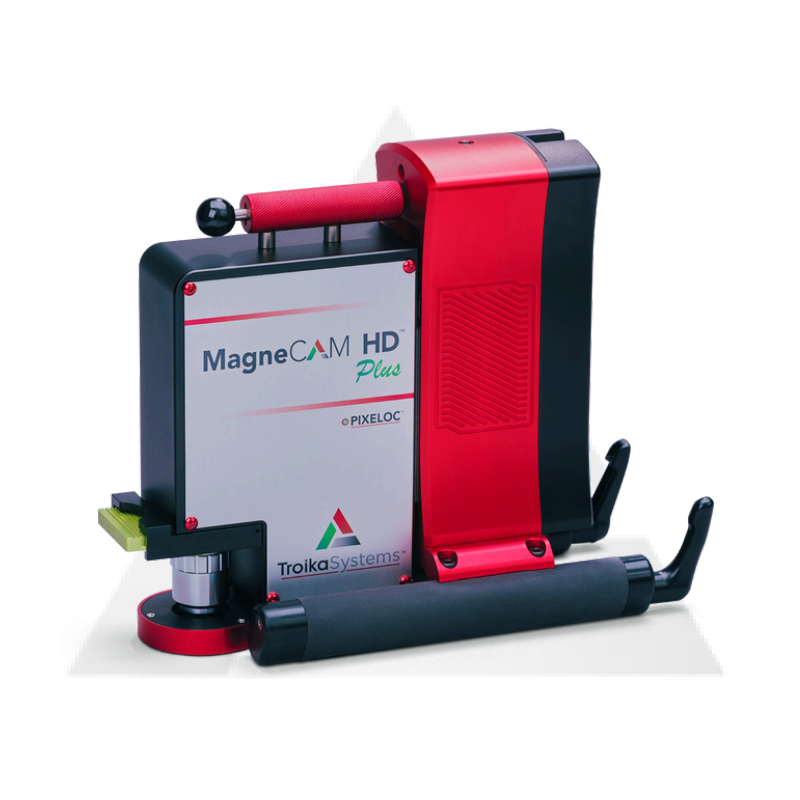

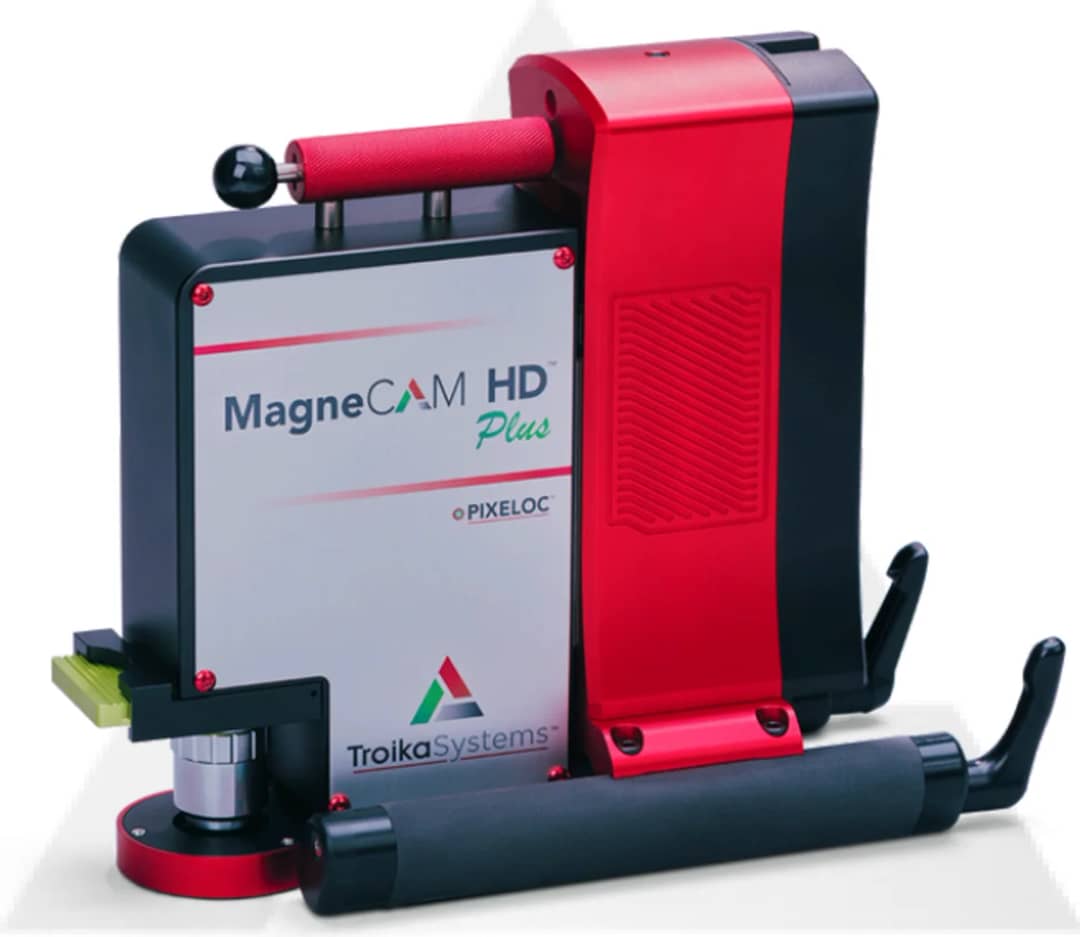

MagneCAM HD™ Plus – Precision in Any Environment
Call us:(603) 8073 2667(603) 8073 2688
Description
The new MagneCAM HD™ Plus option, compatible with the AniCAM HD™ Plus or SurfaceCAM HD™, offers switchable magnetic feet, providing the flexibility to measure steel-based cylinders/rolls at any angle.
Utilising a unique, patent-pending switchable magnetic holding system, the device can be positioned on a cylinder or roll at any angle, including upside down! With the simple flip of controlling levers, the magnetic hold can be activated or deactivated, allowing effortless placement and removal from the roll.
This innovative MagneCAM HD™ Plus option is ideal for environments where readings must be conducted on mounted rolls or cylinders in machines or presses with limited accessibility.
Technical data
| Min cylinder diameter mm | 100 |
|---|
Values are taken from the Troika Systems product information sheet and are typical averages, not a specification.
Features
- Precision in Any Environment: Whether it's embossing steel cylinders or mounted anilox rolls, our solution delivers unparalleled accuracy, surpassing ink draw-down or cell impressions methods.
- Optimal Fit and Functionality: Compatible with cylinders or rolls starting from a minimum diameter of 100mm. Additionally, the Y-axis micro-adjuster feature can not be fitted with the MagenCAM legs.
- Secured with Magnetic Legs: Position your AniCAM HD™ Plus or SurfaceCAM on steel cylinders or rolls rotated at any angle. Our solution incorporates quick-release magnetic legs and special internal drive couplings.
Application fields
Introducing the MagneCAM HD™ Featuring a proprietary magnetic holding system, our device boasts quick-release action, allowing it to be effortlessly positioned on any cylinder or roll at various angles.
Availability in Malaysia
MagneCAM HD™ Plus is supplied in Malaysia by Fortis Industrial Sdn Bhd, Troika Systems’ sole distributor in Malaysia. To quote, send us the anilox rollers and sleeves you want to inspect — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.
Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.
