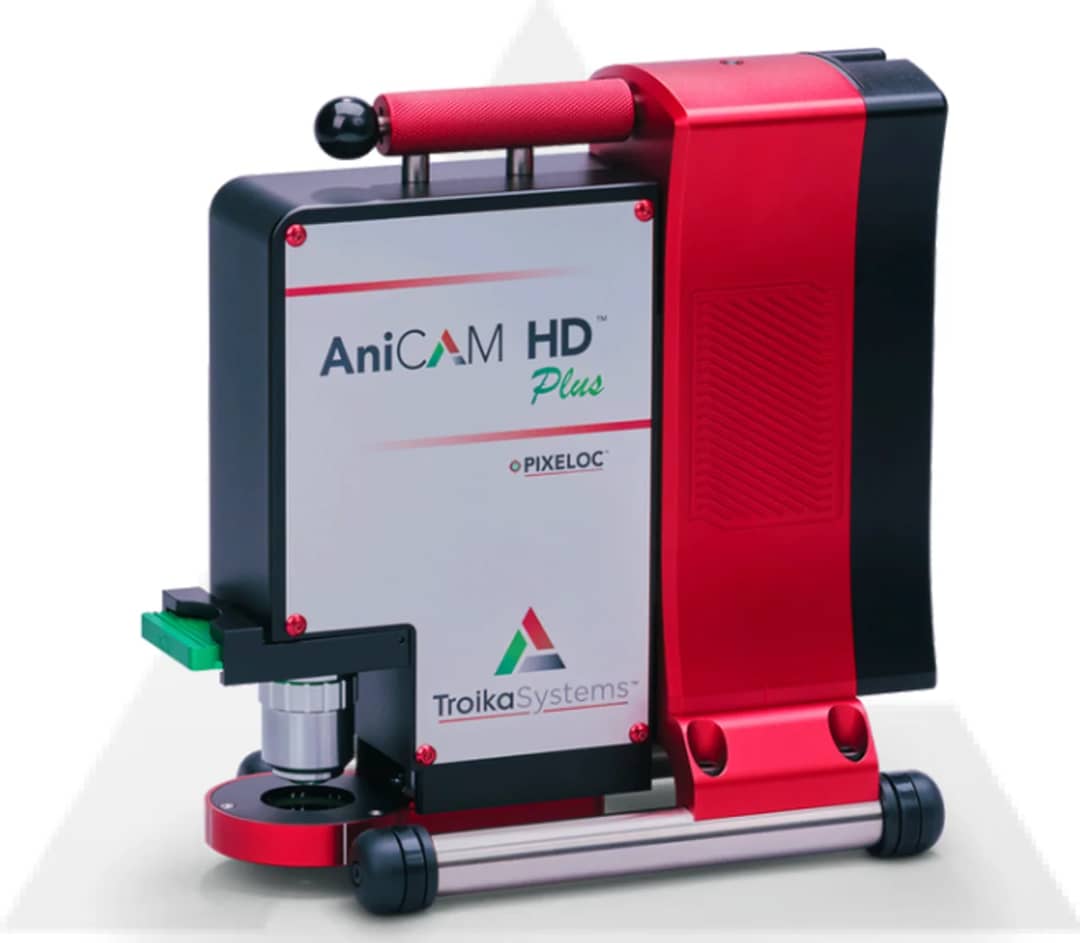

AniCAM HD™ Plus
AniCAM HD™ Plus – Award Winning 3D Inspection Device
Call us:(603) 8073 2667(603) 8073 2688
Description
The AniCAM HD™ Plus represents the latest advancement in pre-press inspection devices, offering proven reductions in both Make-Ready-Waste and Job Setup times. By providing precise measurements of Anilox Rolls, Gravure Cylinders, and Flexoplates, it ensures setups are correct on the first try over 90% of the time.
Specifically designed to be a practical and effective tool for every printer, the new AniCAM HD™ Plus ensures consistent and accurate measurements in any production environment. Enhanced vibration compensation, combined with PIXELOC™ technology, eliminates the need for vibration tables, ensuring accurate and repeatable measurements.
The accompanying software is user-friendly, intuitive, and offers automatic focus, setups, and configurations, guaranteeing consistency between operators and press sites.
Technical data
| Image sensor resolution | 1024x768 |
|---|---|
| Measurement precision um | 0.25 |
| Readings per roll | 5 |
| Software packages | Anilox Quality Control (QC), Gravure Quality Control (QC), Flexoplate Quality Control (QC), Anilox Management System (AMS), Cylinder Management System (CMS) |
| X axis adjustment mm | 10 mm (±5 mm) |
Values are taken from the Troika Systems product information sheet and are typical averages, not a specification.
Features
- Kinematic Lenses: Quickly adjust magnification levels with our new kinematic lenses.
- High-Resolution Image Sensor: Our new image sensor, boasting an impressive 1024x768 resolution, captures details with unprecedented clarity. This results in sharper, clearer images and heightened measurement accuracy, contributing to the precision of your work.
- Anilox Quality Control (QC): Ensure optimal anilox performance with our Anilox QC software package. Analyse engraving depth, volume, and condition to achieve precise ink transfer and consistent print quality.
- Gravure Quality Control (QC): Elevate gravure printing standards with our Gravure QC software package. Monitor cylinder data, assess condition, and plan maintenance to avoid costly re- engraving and downtime.
- Flexoplate Quality Control (QC): Streamline flexoplate production with our Flexoplate QC software package. Analyse dot percentage, screen count, and plate condition to optimize ink usage and minimise waste.
- X-Axis Micro Adjustment: The X-Axis Micro-Adjuster option allows users to laterally move the analysis head of the camera by up to 10 mm (±5 mm), aiding in the detection of single line engravings with precision.

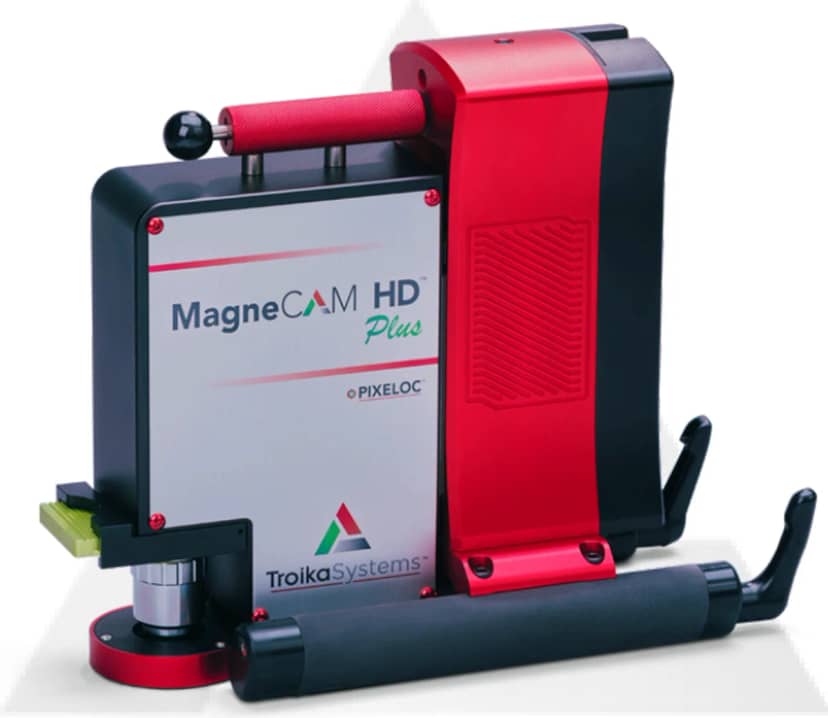

- MagneCAM: Position an AniCAM HD™ on steel cored cylinders/rolls rotated at any angle, incorporating magnetic legs and special internal drive system.
Availability in Malaysia
AniCAM HD™ Plus is supplied in Malaysia by Fortis Industrial Sdn Bhd, Troika Systems’ sole distributor in Malaysia. To quote, send us the anilox rollers and sleeves you want to inspect — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.
Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.
