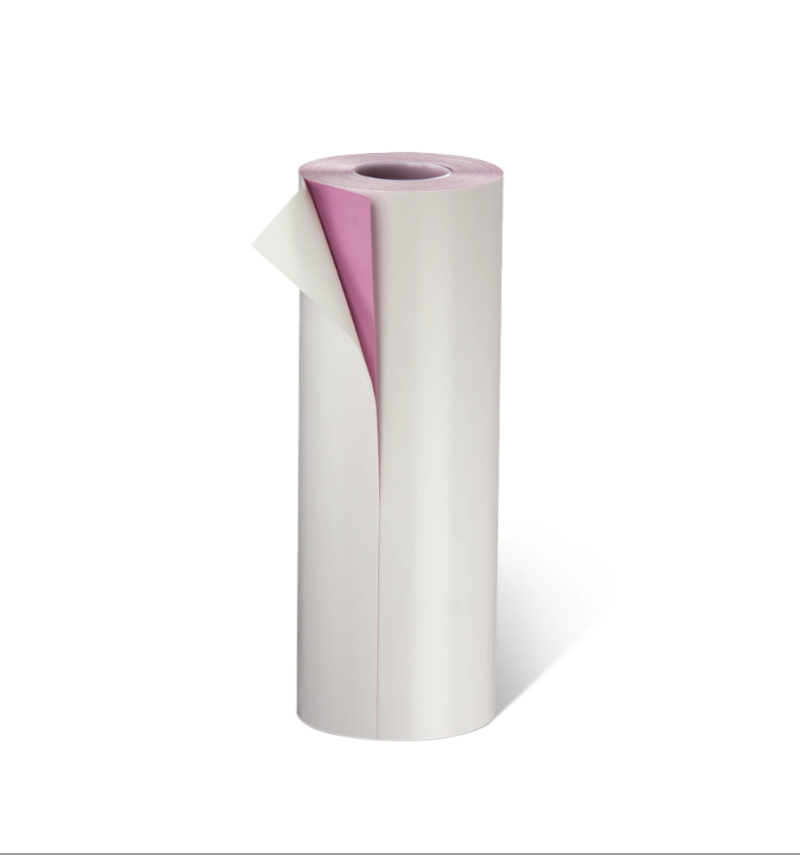

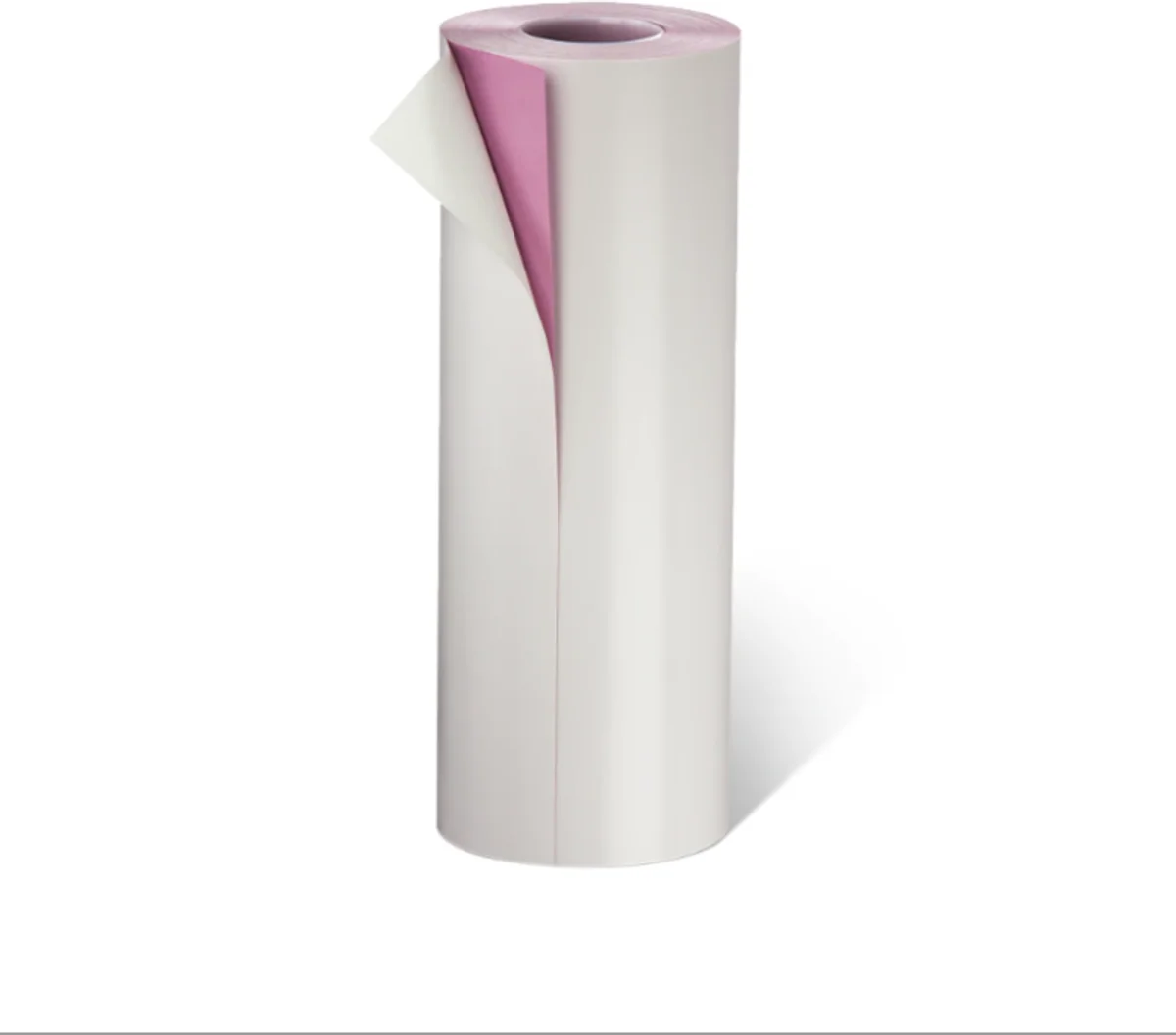

tesa® Softprint 73124 Steelmaster TP – tesa product image
tesa

tesa® Softprint 73124 Steelmaster TP

Medium 500 µm Softprint Steelmaster TP foam plate mounting tape (FLEX design) for steel, aluminium, PU and glassine cylinders, 1.14–1.70 mm plates — purple logo

tesa® Softprint 73124 Steelmaster TP is the medium grade in the Softprint Steelmaster TP 500 µm series — grade 2 of 4 from soft to hard. One step softer: tesa® Softprint 73122 Steelmaster TP (soft); one step harder: tesa® Softprint 73126 Steelmaster TP (medium-hard).

  • Foam hardnessMedium
  • Thickness category500 µm
  • Total thickness550 µm
  • BackingPE foam with film lamination
  • AdhesiveTackified acrylic
  • LinerPP
Request QuoteWhatsApp for a quoteDownload TDS (PDF, tesa 05/06/24)

Call us:(603) 8073 2667(603) 8073 2688

Description

Double-sided foam tape

Technical data

tesa® Softprint 73124 Steelmaster TP specifications
Foam hardnessMedium
Thickness category500 µm
Total thickness550 µm
Logo colourPurple
BackingPE foam with film lamination
AdhesiveTackified acrylic
LinerPP
Mounting surfaceSteel / aluminium / PU and glassine cylinders
Plate thickness1.14 / 1.70 mm

Values are taken from the tesa product information sheet and are typical averages, not a specification.

Features

  • Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Sufficient tape bonding towards sleeve side.
  • Addtional property: Structured PP-liner to prevent formation of air pockets when the plate is mounted. Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.

Application fields

Mounting of 1.14 mm (0.045'') and 1.70 mm (0.067'') flexographic printing plates onto steel /alu /PU and glassine cylinders.

Availability in Malaysia

tesa® Softprint 73124 Steelmaster TP is supplied in Malaysia by Fortis Industrial Sdn Bhd, the sole Malaysian distributor of tesa® tapes for the printing and packaging industry. To quote, send us article number 73124, your press, the plate thickness and the widths you run — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.

Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.

tesa® product information disclaimer

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Other hardness in this series

Same construction as tesa® Softprint 73124 Steelmaster TP in the other foam hardness grades — pick by what you print.
