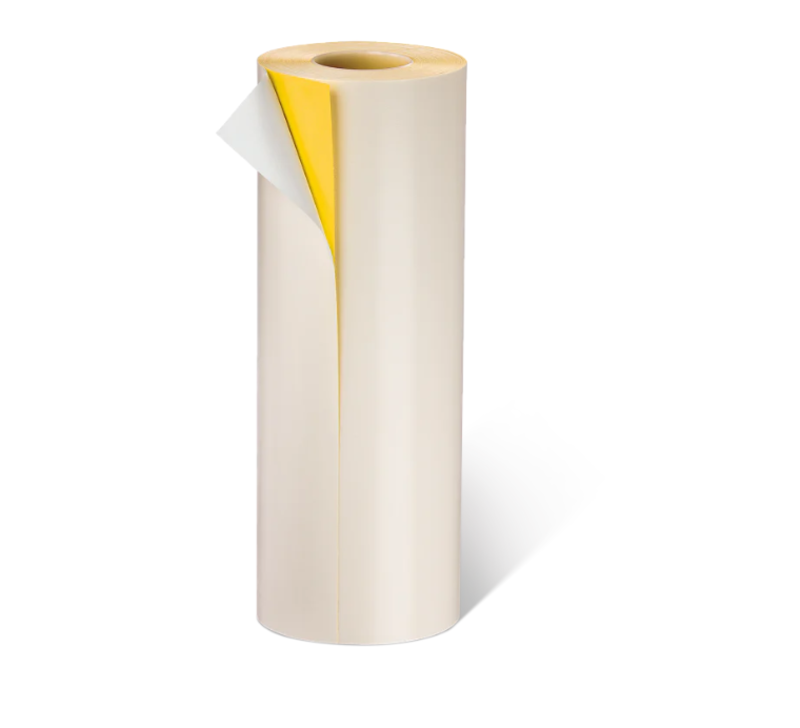

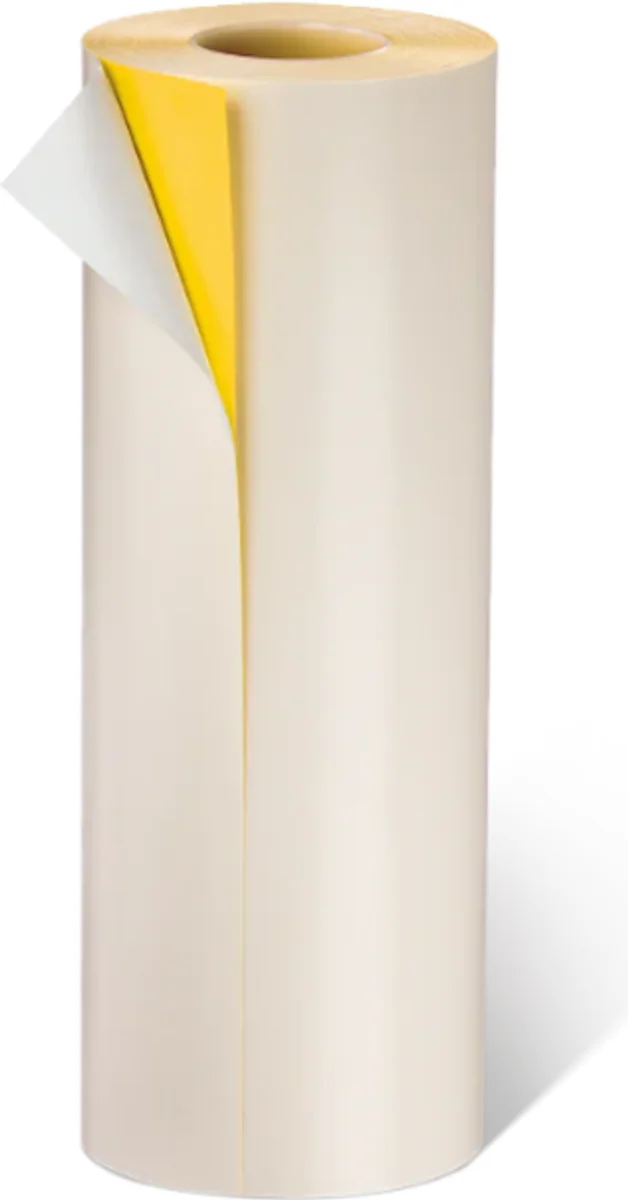

tesa® Softprint 53418 FE – tesa product image
tesa

tesa® Softprint 53418 FE

Extra-soft 380 µm Softprint FE foam plate mounting tape for steel, aluminium and PU cylinders and sleeves, 1.14–1.70 mm plates — yellow logo

tesa® Softprint 53418 FE is the extra-soft grade in the Softprint FE 380 µm series — the softest of the 5 grades we list. One step harder: tesa® Softprint 53417 FE (soft).

  • Foam hardnessExtra-soft
  • Thickness category380 µm
  • Total thickness430 µm
  • BackingPE foam with film lamination
  • AdhesiveTackified acrylic
  • LinerPP
Request QuoteWhatsApp for a quoteDownload TDS (PDF, tesa 16/02/24)

Call us:(603) 8073 2667(603) 8073 2688

Description

Double-sided foam tape

The x-soft foam makes this the ideal solution for printing fine screens.

Technical data

tesa® Softprint 53418 FE specifications
Foam hardnessExtra-soft
Thickness category380 µm
Total thickness430 µm
Logo colourYellow
BackingPE foam with film lamination
AdhesiveTackified acrylic
LinerPP
Mounting surfaceSteel / aluminium / PU cylinders and sleeves
Plate thickness1.14 / 1.70 mm
ColourYellow

Values are taken from the tesa product information sheet and are typical averages, not a specification.

Features

  • Foam Properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive Properties: Low tack surface characteristics. Secure plate bonding with excellent resistance to edge lifting. Excellent tape bonding towards cylinder/sleeve side. Solvent resistance.
  • Additional Properties: Compensating product design for demanding sleeve/cylinder surfaces. Structured PP liner. Color indicates foam hardness.

Application fields

Mounting of 1.14 mm (0.45‘‘) and 1.70 mm (0.067‘‘) flexographic printing plates onto steel / aluminum / PU cylinders and sleeves.

Availability in Malaysia

tesa® Softprint 53418 FE is supplied in Malaysia by Fortis Industrial Sdn Bhd, the sole Malaysian distributor of tesa® tapes for the printing and packaging industry. To quote, send us article number 53418, your press, the plate thickness and the widths you run — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.

Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.

tesa® product information disclaimer

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Other hardness in this series

Same construction as tesa® Softprint 53418 FE in the other foam hardness grades — pick by what you print.
