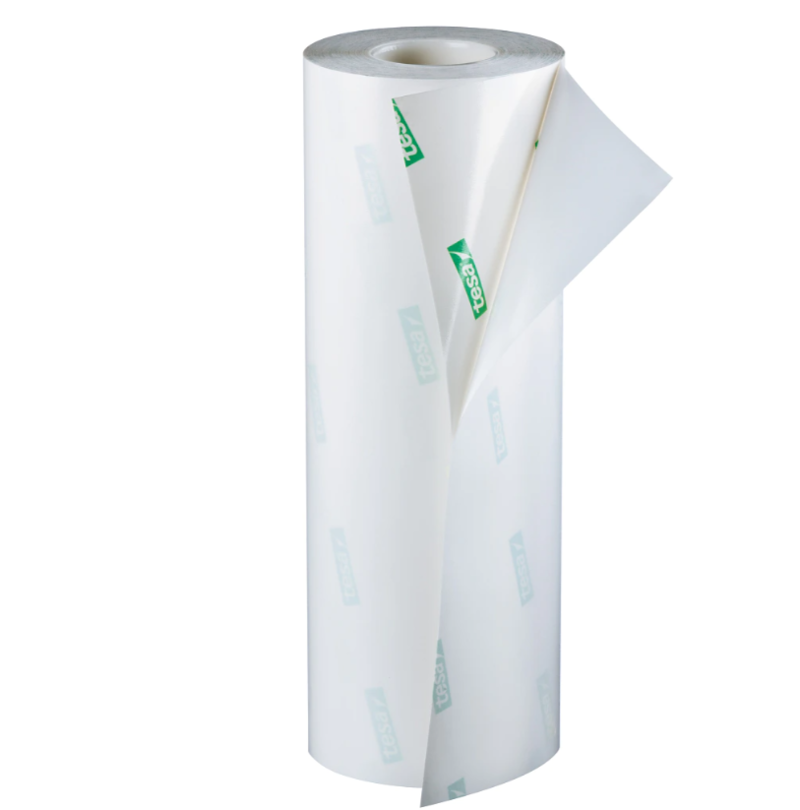

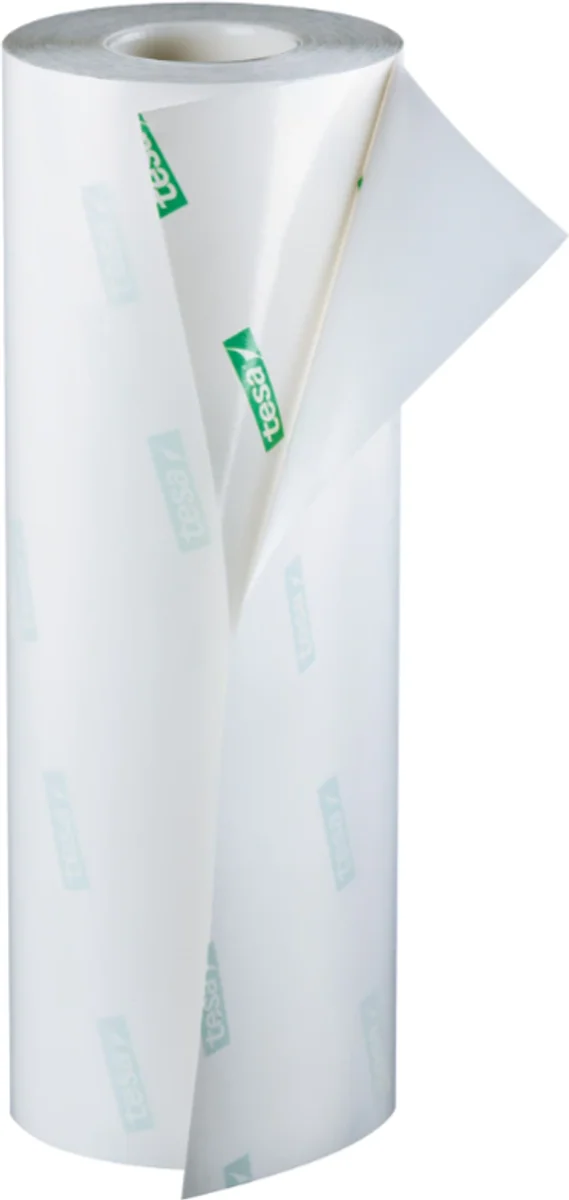

tesa® Softprint 52814 Secure – tesa product image
tesa

tesa® Softprint 52814 Secure

Hard 380 µm Softprint Secure foam plate mounting tape for steel, aluminium, PU and glassine cylinders and sleeves, 1.14–1.70 mm plates — green logo

tesa® Softprint 52814 Secure is the hard grade in the Softprint Secure 380 µm series — the hardest of the 4 grades we list. One step softer: tesa® Softprint 52815 Secure (medium-hard).

  • Foam hardnessHard
  • Thickness category380 µm
  • Total thickness430 µm
  • BackingPE foam with film lamination
  • AdhesiveTackified acrylic
  • LinerPP
Request QuoteWhatsApp for a quoteDownload TDS (PDF, tesa 16/02/24)

Call us:(603) 8073 2667(603) 8073 2688

Description

Double-coated foam tape

Technical data

tesa® Softprint 52814 Secure specifications
Foam hardnessHard
Thickness category380 µm
Total thickness430 µm
Logo colourGreen
BackingPE foam with film lamination
AdhesiveTackified acrylic
LinerPP
Mounting surfaceSteel / aluminium / PU and glassine cylinders and sleeves
Plate thickness1.14 / 1.70 mm

Values are taken from the tesa product information sheet and are typical averages, not a specification.

Features

  • Foam Properties: Low thickness tolerance. Long lasting, constant recovery characteristics
  • Adhesive Properties: Low tack surface characteristics. Strong adhesion on both sides. Solvent resistance.
  • Additional Properties: Structured PP liner. Logo color indicates foam hardness.

Application fields

Mounting of 1.14 mm (0.45‘‘) and 1.70 mm (0.067‘‘) thickness, PET backing, flexographic printing plates onto steel / alu / PU and glassine cylinders and sleeves.

Availability in Malaysia

tesa® Softprint 52814 Secure is supplied in Malaysia by Fortis Industrial Sdn Bhd, the sole Malaysian distributor of tesa® tapes for the printing and packaging industry. To quote, send us article number 52814, your press, the plate thickness and the widths you run — we reply within one working day (Mon–Fri 9:00–18:00 MYT) with stock position and pricing.

Use the form on this page, WhatsApp +60 12-353 8820 or call (603) 8073 2667.

tesa® product information disclaimer

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Other hardness in this series

Same construction as tesa® Softprint 52814 Secure in the other foam hardness grades — pick by what you print.
